Agilent compatible (HP) screw vials

Features of the Agilent compatible screw neck

Agilent compatible screw vials have a short 9 mm thread. It was developed for the Agilent autosamplers to allow the handling with a robotic arm. It is an especially fine thread with a small incline. The cap screws on flatter than other screw cap types and the seal is therefore tighter.

Features of our Agilent compatible screw vials


Agilent compatible screw caps are available with:

  • non-pigemented ms-Pure silicone/PTFE septum
  • red/white silicone/PTFE septum

go to closures

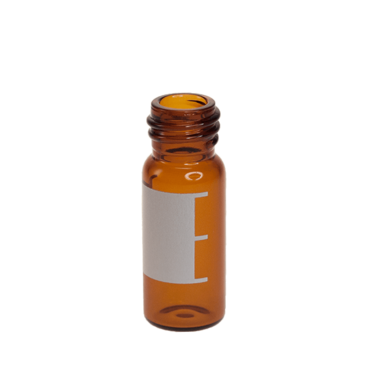

BL04-HP-D

blueLine standard vial with write-on patch: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Amber glass
Volume
1.5 ml
Diameter
12 mm
Height in mm
32 mm

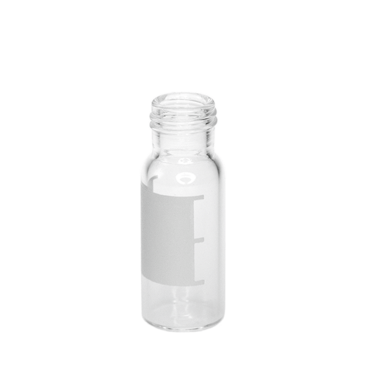

BL04-HP-H

blueLine standard vial with write-on patch: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Clear glass
Volume
1.5 ml
Diameter
12 mm
Height in mm
32 mm

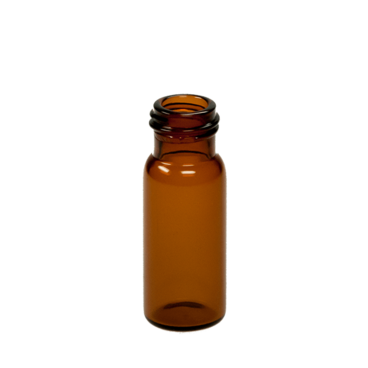

G004-HP-D

1.5 ml standard vial: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Amber glass
Volume
1.5 ml
Diameter
12 mm
Height in mm
32 mm

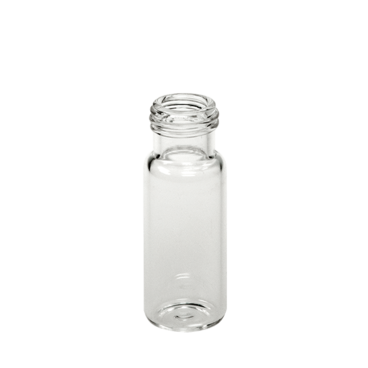

G004-HP-H

1.5 ml standard vial: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Clear glass
Volume
1.5 ml
Diameter
12 mm
Height in mm
32 mm

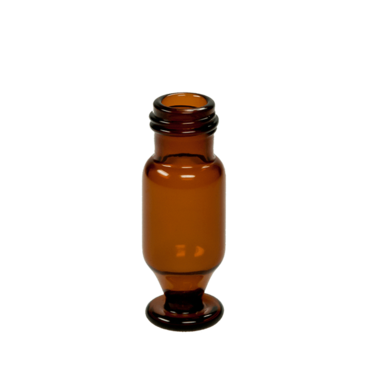

8004-HP-D/V15µ

Vµ-Vial for optimised microsampling: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Amber glass
Volume
1.2 ml
Diameter
12 mm
Height in mm
32 mm

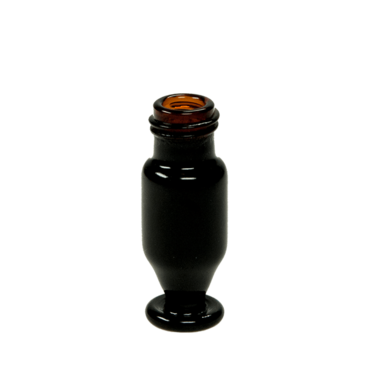

8004-HP-D/V15µ/BLACK

Vµ-Vial for optimised microsampling and black opaque coating for the protection of light sensitive samples: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Amber glass
Volume
1.2 ml
Diameter
12 mm
Height in mm
32 mm

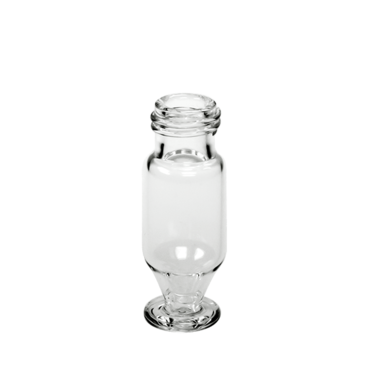

8004-HP-H/V15µ

Vµ-Vial for optimised microsampling: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Clear glass
Volume
1.2 ml
Diameter
12 mm
Height in mm
32 mm

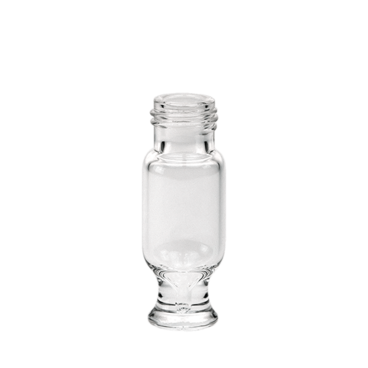

8004-HP-H/iK11µ

iK11µ-Vial for optimised microsampling: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Clear glass
Volume
1.1 ml
Diameter
12 mm
Height in mm
32 mm

G004-HP-PP/i17µ

pp-Pure Vial: Vial made from very pure polypropylene, inner form of the vial allows sample volumes ranging from 100 to 700 µl: Screw vial ND9
Bottle type
Screw vial ND9
Closure size
9-425
Material
Polypropylene
Volume
700 µl
Diameter
12 mm
Height in mm
32 mm

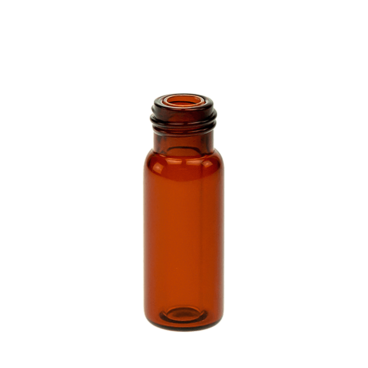

8004-HP-D/i4µ-FB

i4µ-Vial with 400 µl flat bottom insert: Screw vial ND9, borosilicate glass, vial opening 6 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Amber glass
Volume
400 µl
Diameter
12 mm
Height in mm
32 mm

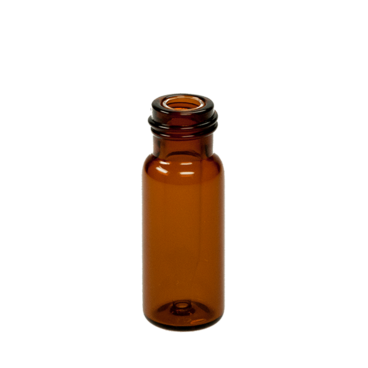

8004-HP-D/i3µ

µ-Vial with 350 µl conical insert (base bonded): Screw vial ND9, borosilicate glass, vial opening 4.8 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Amber glass
Volume
350 µl
Diameter
12 mm
Height in mm
32 mm

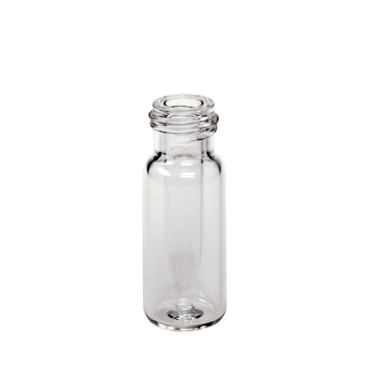

8004-HP-H/i3µ

µ-Vial with 350 µl conical insert (base bonded): Screw vial ND9, borosilicate glass, vial opening 4.8 mm
Bottle type
Screw vial ND9
Closure size
9-425
Material
Clear glass
Volume
350 µl
Diameter
12 mm
Height in mm
32 mm
